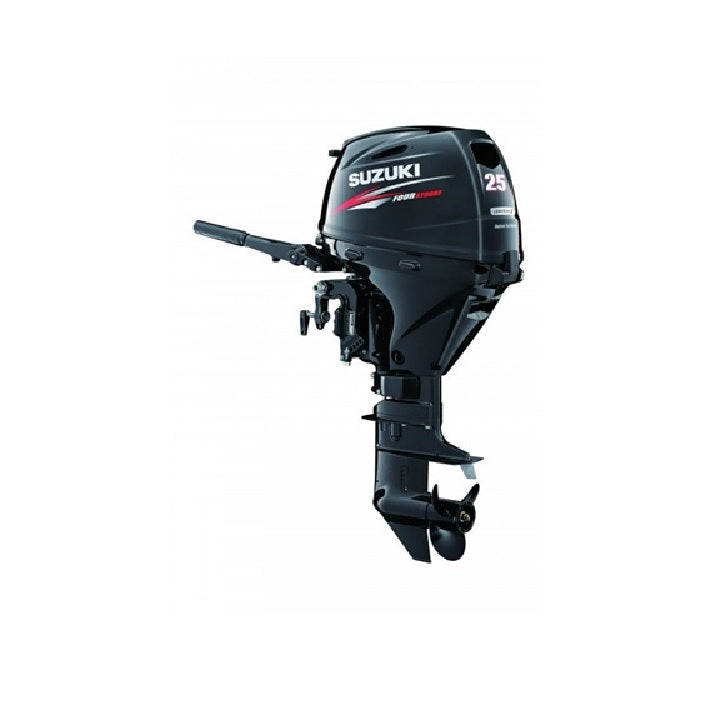

Suzuki 25hp 4-Stroke Outboard Engine – DF25ATL

Lightest in-class outboard packed with Suzuki technology. Suzuki engineers have packed the new in-line three-cylinder DF25A with some of Suzuki’s finest technologies giving it class-leading advantages that put it ahead of the rest. Engineering lightweight outboards has long been a Suzuki hallmark so in keeping with that, the DF25A is the lightest outboard in the 25hp class. It is the first in class to feature friction reducing roller rocker arms and to utilise an offset crankshaft to achieve smoother operation and greater mechanical efficiency. Fuel is supplied with our Lean Burn Control system and a Battery-Less Fuel Injection system that gives these outboards remarkable improvements in fuel efficiency while maintaining excellent power and performance. An LED monitoring system also provides engine operating status at a glance.

Dimensions and weights

• Recommended transom height: 508mm (20in).
• Weight: 72.0kg.
• Bore x Stroke: 60.4 x 57.0mm.
• Propeller Selection (pitch): 10 1/4 x 9 – 14.

Engine specifications

• Starting System: Electric.
• Engine Type: OHC 6-Valve.
• Fuel Delivery System: Battery-less Electronic Fuel Injection.
• No. of Cylinders: In-line 3.
• Piston Displacement cm3: 490cc.
• Maximum Output:18.4kW.
• Full Throttle Operating Range: 5,000 – 6,000.
• Steering: Remote.
• Oil Pan Capacity: 1.5Lit.
• Ignition System: Digital CDI.
• Alternator: 14A.
• Engine Mounting: Shear Mount.
• Trim Method: Power Trim & Tilt.
• Gear Ratio: 2.09:1.
• Gear Shift: F-N-R.
• Exhaust: Through-prop Hub Exhaust.
